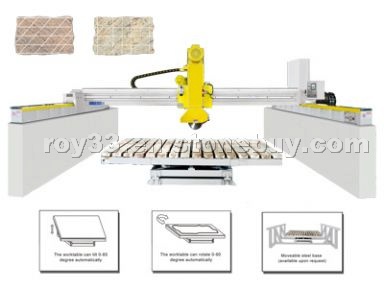

Marble Bridge Cutter

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1459269

• Place of Origin:

  China
• Bridge Cutting Machine for slabs and tiles of Granite and Marble
  Under computer control, the machine is very easy in operation.
  Lineal Guide, Hydraulic System, Laser Marking Device and Imported Electric Parts ensure Fast Cutting, Machining Accuracy, Stable Performance and High Efficiency.

  1. Bridge structure of wide crossbeam, large slab proces available,
  2. Table can tilt rotate in wide angle for special processing,
  3. PLC control system, fully automatic smooth feeding,
  4. Precise motion of head in X, Y, Z axis by lead screws,
  5. Electric parts of Japanese brand adopted, reliability guaranteed,
  6. Touch-sensitive operating system, friendly human-machine interface,
  7. CE certificated.

  Technical Parameter
  Blade diameter: 400/600mm
  Main motor power: 15kw
  Table tilting degree: 0-85
  Table rotation degree: 90/360
  Table size: 3200x2000mm
  Max. cutting size: 3200x3200x80mm(LXWXH)
  Overall size: 6000x5000x2800mm (LXWXH)
  Water consumption: 4 CMB/h
  Total weight: 5000kg

  Bridge cutting machine, bridge saw, bridge cutter, slab cutting machine, granite saw, granite cutter, marble sawing machine, laser cutting machine, stone processing equipment

  For more, please feel free to contact us.
