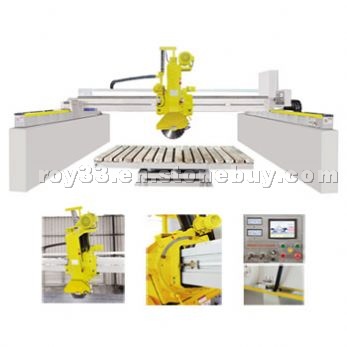

Infrared Bridge Cutting Machine

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1468856

• Place of Origin:

  China
• Bridge Cutting Machine for Cutting Slabs, tiles and small Blocks
  - Very stong cast iron structure and long crossbeam
  - High quality steel mechanical parts
  - Fully controlled by PLC and works automatic by program
  - Head can tilt 0-45 degree to do the chamfering for tiles
  - Magnetic grid sensor ensurs very precise cutting accuracy
  - Electornical parts of name brand such as PANASONIC, FUJI, LG, etc...
  - Friendly human-machine interface easy operation
  - CE certificate

  Technical Parameter
  Max. blade diameter 700 mm
  Max. cutting size (LxWxH) 4200x2000x230 mm
  Worktable tilting 0-85 degree
  Worktable roating 90 degree
  Blade tilting 45 degree
  Vertical head stroke 420 mm
  Worktable size 4200X2000 mm
  Main motor power 18.5 kw
  Total power 25.65 kw
  Overall dimension 7500X6500X3500 mm

  For more, please feel free to contact us.
